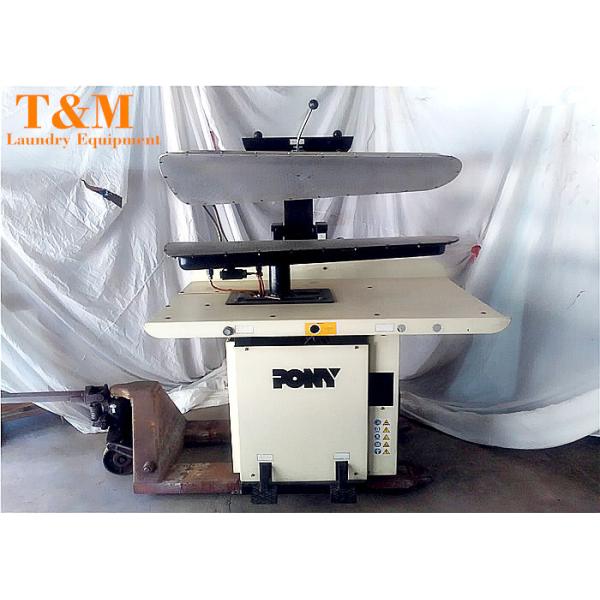

Pony 47 Air Operated Press Pneumatic Mod Durable Home With Net Weight 380 Kg

Manual operated press Mod. SP-U, utility shape boards

Universal ironing Presswith padded buck and head . The movement of the upper head is opearated by a pressure pedal, producing excellent results whilst being very easy to use and maintain . Buck and head are both steaming and buck is also vacuum .
Available either for connection to external steam and vacuum supplies or self-contained.
The built-in boiler can be powered to be connected to a second machine .

Available extras:
-Boiler
- Vacuum
- GFV iron assembly
-Sleeve spotting arm and shape.

TECHNICAL DATA:
Required power: 230/1 o 400 V./3+N/50 Hz
Water feeding: tubo gomma ø 13 mm
Steam inlet: 1/2
Return outlet: 1/2
Air inlet:
Steam working pressure: 5 bar
Air working pressure:
Steam consumption: 16÷20 Kg/h
Air consumption:
Central vacuum connect.: ø 48 mm
Vacuum depression: 200 mm H²o
Vacuum air consumption: 360 m³/h
Boiler drain: 1/2
Vacuum outlet: ø 100 mm
Boiler heating: 10÷12÷15÷18 kW
Iron heating element: 0,8 Kw
Vacuum motor: 0,37 kW
Pump motor: 0,6 kW
Compressor motor:
Encumbrance: 1250 x 1150 mm
Net weight: 380 kg
Gross weight: 410 kg
Overall dimensions: 1400x1150x1400 mm
